NEXT LEVEL SPEED BASH

VORTEKS 4X4 3S BLX FEATURES

ENGINEERED FOR SPEED

ADVANCED TECHNOLOGY

HIGHLY DETAILED DESIGN

Specifications

ARRMA Part Number
ARA4305V3T1
ARA4305V3T2
ARA4305V3T3
Vehicle Name
VORTEKS 4X4 3S BLX BRUSHLESS 1/10TH 4WD STADIUM TRUCK (RED)
VORTEKS 4X4 3S BLX BRUSHLESS 1/10TH 4WD STADIUM TRUCK (PURPLE)
VORTEKS 4X4 3S BLX BRUSHLESS 1/10TH 4WD STADIUM TRUCK (GREEN)
SCALE
1/10
1/10
1/10
MAX SPEED POSSIBLE
60+mph / 96+km/h
60+mph / 96+km/h
60+mph / 96+km/h
POWER TYPE
Brushless
Brushless
Brushless
BUILD STATUS
RTR
RTR
RTR
Saleable Part #
ARA4305V3T1
ARA4305V3T2
ARA4305V3T3
Horizon Hobby Saleable Part #
ARA4305V3T1
ARA4305V3T2
ARA4305V3T3
BUILD CONFIGURATION OPTIONS
Mid Motor
Mid Motor
Mid Motor
DRIVE TYPE
4WD
4WD
4WD
VEHICLE TYPE
Stadium Truck
Stadium Truck
Stadium Truck
SURFACE
Off-road
Off-road
Off-road
LENGTH
470mm / 18.5"
470mm / 18.5"
470mm / 18.5"
WHEELBASE
287mm / 11.3"
287mm / 11.3"
287mm / 11.3"
RIDE HEIGHT
40mm / 1.57"
40mm / 1.57"
40mm / 1.57"
FRONT WIDTH
338mm / 13.31"
338mm / 13.31"
338mm / 13.31"
REAR WIDTH
338mm / 13.31"
338mm / 13.31"
338mm / 13.31"
HEIGHT
163mm / 6.42"
163mm / 6.42"
163mm / 6.42"
NUMBER OF DIFFERENTIALS
2
2
2
WEIGHT (NO BATTERY)
2.95kg / 6lbs 8oz
2.95kg / 6lbs 8oz
2.95kg / 6lbs 8oz
BATTERY RECOMMENDATIONS
2S or 3S Lipo (Hardcase only) within dimensions 156 x 51 x 48mm / 6.14 x 2.01 x 1.89 inches
2S or 3S Lipo (Hardcase only) within dimensions 156 x 51 x 48mm / 6.14 x 2.01 x 1.89 inches
2S or 3S Lipo (Hardcase only) within dimensions 156 x 51 x 48mm / 6.14 x 2.01 x 1.89 inches
WARRANTY LEVEL
2 Year Limited
2 Year Limited
2 Year Limited
ARRMA Part Number
ARA4305V3T1
ARA4305V3T2
ARA4305V3T3
Vehicle Name
VORTEKS 4X4 3S BLX BRUSHLESS 1/10TH 4WD STADIUM TRUCK (RED)
VORTEKS 4X4 3S BLX BRUSHLESS 1/10TH 4WD STADIUM TRUCK (PURPLE)
VORTEKS 4X4 3S BLX BRUSHLESS 1/10TH 4WD STADIUM TRUCK (GREEN)

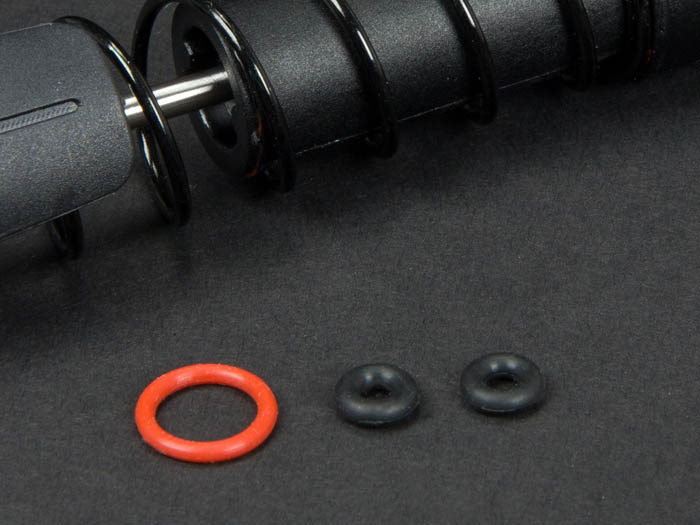

FRONT SPRING RATE
1.20N/mm
1.20N/mm
1.20N/mm
REAR SPRING RATE
1.06N/mm
1.06N/mm
1.06N/mm
CAPTURED HINGEPINS
Yes
Yes
Yes
TURNBUCKLES/FIXED LINKS
Turnbuckles
Turnbuckles
Turnbuckles
HARDWARE TYPE
Hex Head
Hex Head
Hex Head
LOCKING DIFFS
No
No
No
DIFFERENTIAL TYPE
Gear
Gear
Gear
STANDARD SHOCK OIL (Viscosity)
500cSt
500cSt
500cSt
STANDARD DIFF OIL (Viscosity)
10,000cSt
10,000cSt
10,000cSt
STANDARD SHOCK OIL (Type)
Silicone
Silicone
Silicone
STANDARD DIFF OIL (Type)
Silicone
Silicone
Silicone
DIFFERENTIAL CROWN GEAR SPECIFICIATION
37T 1.35m
37T 1.35m
37T 1.35m
DIFFERENTIAL PINION GEAR SPECIFICIATION
13T 1.35m
13T 1.35m
13T 1.35m
INTERNAL GEAR RATIO
2.85
2.85
2.85
INTERNAL GEAR MATERIAL
Plastic
Plastic
Plastic

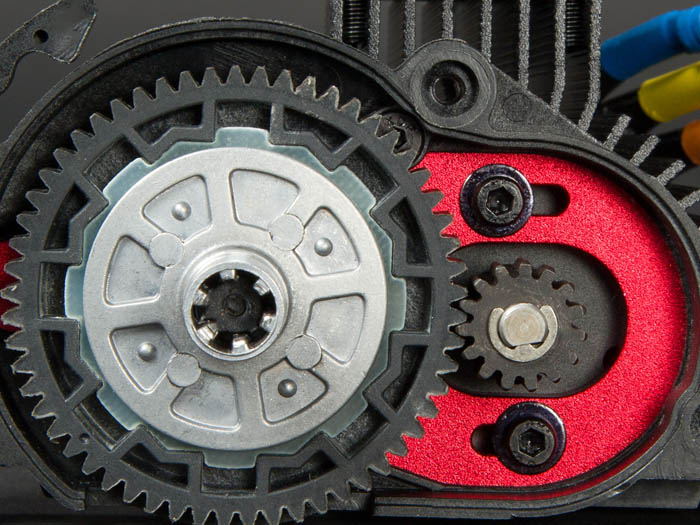

FITTED SPUR SIZE
57Tooth
57Tooth
57Tooth
FITTED SPUR MATERIAL
Plastic
Plastic
Plastic
FITTED PINION GEAR SIZE
18Tooth
18Tooth
18Tooth
FITTED PINION MATERIAL
Metal
Metal
Metal
PINION AND SPUR TOOTH PITCH
0.8m
0.8m
0.8m
STANDARD FINAL GEAR RATIO
9.03
9.03
9.03
FINAL GEAR RATIO RANGE
6.25 - 10.83
6.25 - 10.83
6.25 - 10.83
TIRE STANDARD
ST (2.8")
ST (2.8")
ST (2.8")

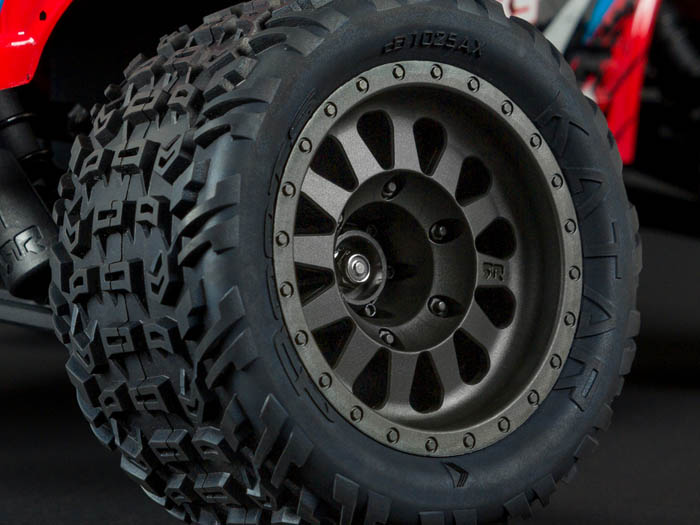

TIRES INCLUDED
dBoots KATAR
dBoots KATAR
dBoots KATAR
TIRE DIAMETER
115mm / 4.53"
115mm / 4.53"
115mm / 4.53"
DRIVESHAFT TYPE
UJ Slider
UJ Slider
UJ Slider
WHEEL BEAD DIAMETER
72mm / 2.83"
72mm / 2.83"
72mm / 2.83"
WHEEL HEX SIZE
14mm
14mm
14mm
WHEEL STANDARD
ST (2.8" 14mm hex)
ST (2.8" 14mm hex)
ST (2.8" 14mm hex)
WHEEL COLOR/FINISH
Gun Metal
Gun Metal
Gun Metal
MOUNTED TIRES
Yes
Yes
Yes
TIRE ATTACHMENT METHOD
Glued
Glued
Glued
SERVO HORN MATERIAL
Plastic
Plastic
Plastic
SERVO SPLINE SIZE
23T
23T
23T
BATTERY MAX DIMENSIONS
156x51x48mm / 6.14x2.01x1.89"
156x51x48mm / 6.14x2.01x1.89"
156x51x48mm / 6.14x2.01x1.89"
CHASSIS MATERIAL
Moulded Composite
Moulded Composite
Moulded Composite
TRIMMED BODY
Yes
Yes
Yes
BODY-ON BATTERY ACCESS
No
No
No
BODY PIN RETAINERS
Yes
Yes
Yes
TORQUE SPLIT
50/50
50/50
50/50
ARRMA Part Number
ARA4305V3T1
ARA4305V3T2
ARA4305V3T3
Vehicle Name
VORTEKS 4X4 3S BLX BRUSHLESS 1/10TH 4WD STADIUM TRUCK (RED)
VORTEKS 4X4 3S BLX BRUSHLESS 1/10TH 4WD STADIUM TRUCK (PURPLE)
VORTEKS 4X4 3S BLX BRUSHLESS 1/10TH 4WD STADIUM TRUCK (GREEN)
POWER LEVEL
3S
3S
3S

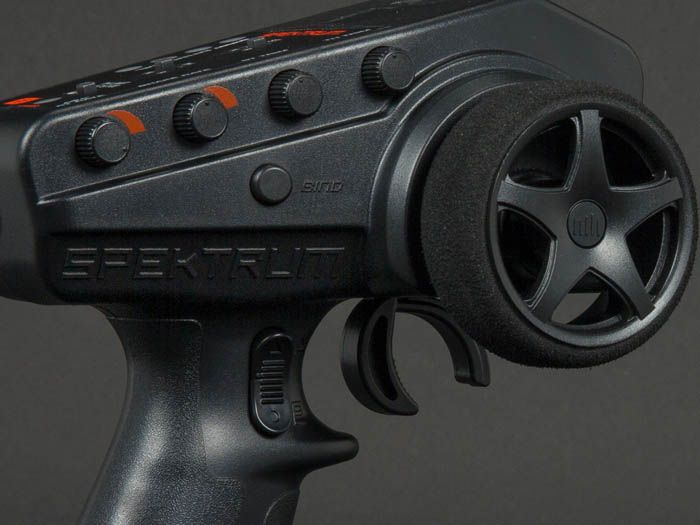

RADIO SYSTEM
Spektrum DX3 Tx / SR6200 Rx
Spektrum DX3 Tx / SR6200 Rx
Spektrum DX3 Tx / SR6200 Rx
2.4Ghz
Yes
Yes
Yes
NUMBER OF RADIO CHANNELS
3
3
3

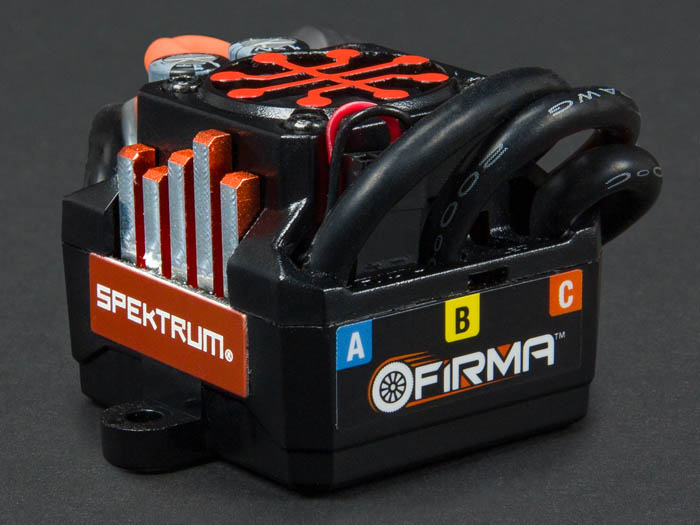

ESC
Spektrum FIRMA 100A SMART
Spektrum FIRMA 100A SMART
Spektrum FIRMA 100A SMART
WATERPROOF ELECTRONICS
Yes
Yes
Yes
ESC CONNECTOR TYPE
IC5
IC5
IC5
MOTOR
SPEKTRUM FIRMA BRUSHLESS 3200Kv 3660
SPEKTRUM FIRMA BRUSHLESS 3200Kv 3660
SPEKTRUM FIRMA BRUSHLESS 3200Kv 3660
MAXIMUM MOTOR SIZE
3668
3668
3668

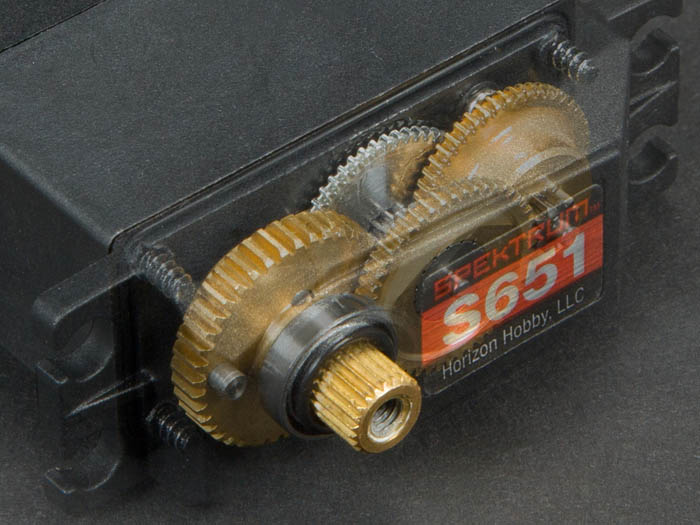

SERVO
SPEKTRUM S651
SPEKTRUM S651
SPEKTRUM S651
SERVO GEAR MATERIAL
Metal
Metal
Metal
MAX SERVO TORQUE @6v
7.27kg-cm / 101oz-in
7.27kg-cm / 101oz-in
7.27kg-cm / 101oz-in
MAX SERVO SPEED @6v
0.14sec
0.14sec
0.14sec
ARRMA Part Number
ARA4305V3T1
ARA4305V3T2
ARA4305V3T3
Vehicle Name
VORTEKS 4X4 3S BLX BRUSHLESS 1/10TH 4WD STADIUM TRUCK (RED)
VORTEKS 4X4 3S BLX BRUSHLESS 1/10TH 4WD STADIUM TRUCK (PURPLE)
VORTEKS 4X4 3S BLX BRUSHLESS 1/10TH 4WD STADIUM TRUCK (GREEN)

Included

BATTERY CONNECTOR SUPPLIED
IC5
IC5
IC5
TOOLS INCLUDED
Multi Tool and Hex Wrenches (2.0, 2.5mm)
Multi Tool and Hex Wrenches (2.0, 2.5mm)
Multi Tool and Hex Wrenches (2.0, 2.5mm)
ADDITIONAL PARTS
20T Speed Pinion
20T Speed Pinion
20T Speed Pinion

Required

RECOMMENDED LIPO BATTERY MINIMUM CONTINUOUS DISCHARGE RATE
50C 5000mAh
50C 5000mAh
50C 5000mAh
REQUIRED ITEMS
6 to 8-Cell NiMh, 2S LiPo or 3S Hardcase LiPo Battery, LiPo Charging Bag, Charger, 4 x 'AA' Batteries
6 to 8-Cell NiMh, 2S LiPo or 3S Hardcase LiPo Battery, LiPo Charging Bag, Charger, 4 x 'AA' Batteries
6 to 8-Cell NiMh, 2S LiPo or 3S Hardcase LiPo Battery, LiPo Charging Bag, Charger, 4 x 'AA' Batteries
