ARRMA GRANITE VOLTAGE

VOLTAGE FEATURES

•

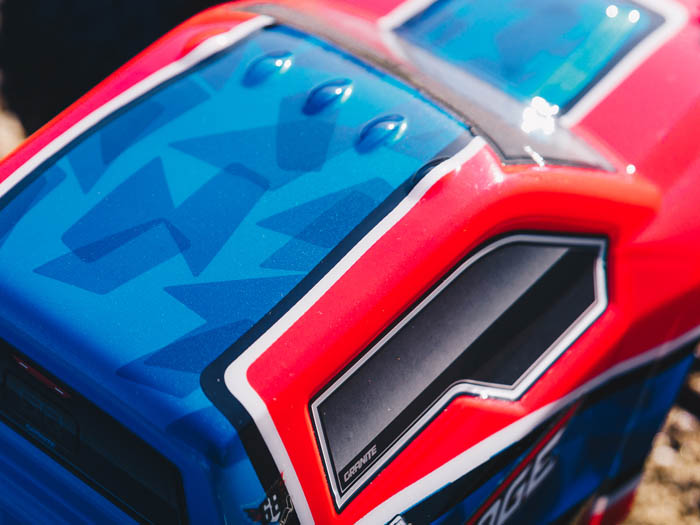

  ALL-NEW BODY
  PRINT DESIGN
•

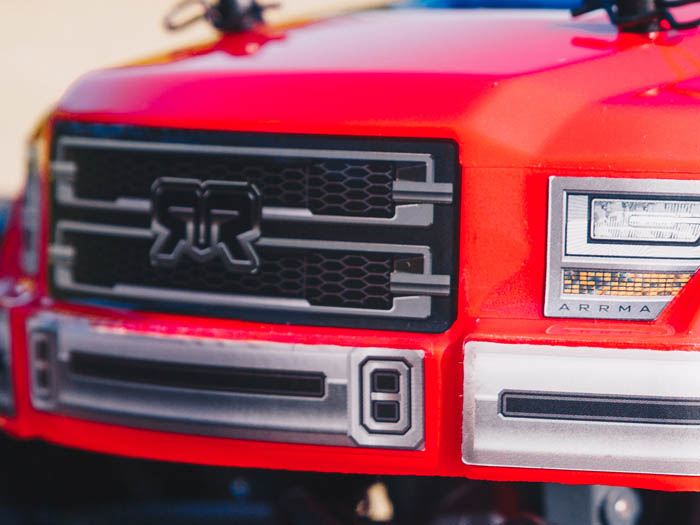

  ULTRA-DETAILED
  DECALS
•

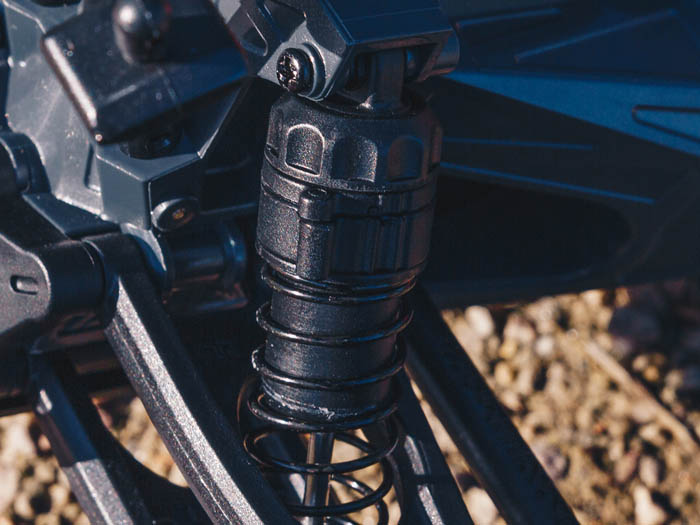

  OIL-FILLED
  SHOCKS
  FOR PRECISE
  HANDLING
•
  QUICK-CHANGE
  BATTERY CRADLE
•
  ARRMA ATX101
  2.4GHz TRANSMITTER
•
  ARRMA MEGA SRS
  WATERPROOF
  3-IN-1 UNIT

LIVING THE GRANITE LIFESTYLE

•
•
  FRESH NEW RED
  & BLUE BODY DESIGN
•
  ARRMA VOLTAGE MEGA SRS - GRANITE MONSTER TRUCK
•
  BUILT TO BE WATERPROOF
•
  ARRMA VOLTAGE MEGA SRS - GRANITE MONSTER TRUCK
  built to stomp wherever it wants
•
  ARRMA VOLTAGE MEGA SRS - GRANITE MONSTER TRUCK
•
  BATTERY COMPATIBILITY
  ARRMA's unique design battery cradle allows you to choose your preferred power source:
  NiMh or LiPo
  NiMh (6 cell 7.2v): 4-8 mins run time
  LiPo (2S Min. Required 2000mAh 25C): 8-22 mins run time
  ARRMA GRANITE VOLTAGE includes one ARRMA 1800mAh
  6 cell NiMh battery, as standard

GRANITE MONSTER TRUCK

•
  MID MOTOR CHASSIS DESIGN
  ARRMA 20T 540 brushed motor sits within the chassis to protect it from dirt, water and heavy rear-end impacts
•
  HEIGHT-ADJUSTABLE BODY MOUNTS
  OIL-FILLED REAR SHOCKS
  MID-MOUNTED 20T 540 BRUSHED MOTOR
  ADS-5 SRS SERVO
  MEGA SRS 3-IN-1 UNIT
  OIL-FILLED FRONT SHOCKS
  BALL BEARINGS ALL-ROUND
•
  HEIGHT-ADJUSTABLE FRONT BODY MOUNT
•
  HEIGHT-ADJUSTABLE REAR BODY MOUNT
•
  BASHING OPTIMIZED SUSPENSION & GEOMETRY DESIGN
•
  ARRMA VOLTAGE
  VEHICLES INCLUDE:
  • Oil-filled shock absorbers as standard
  • The springs are loaded from the top of the shocks, making it almost impossible for springs to be lost
•
  ADS-5 SRS SERVO
  • Features a 25T moulded output spline
  • Performance: 70oz/in (5kg/cm) 0.12s at 6V
•
  BALL BEARINGS THROUGHOUT, AS STANDARD
  • Super-smooth wheel axle performance
  • Built to be FAST
  • Built to be TOUGH
•
  TOUGH
  TRANSMISSION
  DESIGN
  • Wide, moulded composite gears for massive strength and durability
  • Gear differential with all-metal internal gears
  • Ball bearings support gears for smooth and efficient operation
•
  ALL METAL DIFF INTERNALS
•
  OIL-FILLED SHOCKS FOR PRECISE HANDLING

GRANITE UNDER THE HOOD

•
  UNIQUE ARRMA BATTERY
  CRADLE DESIGN
•

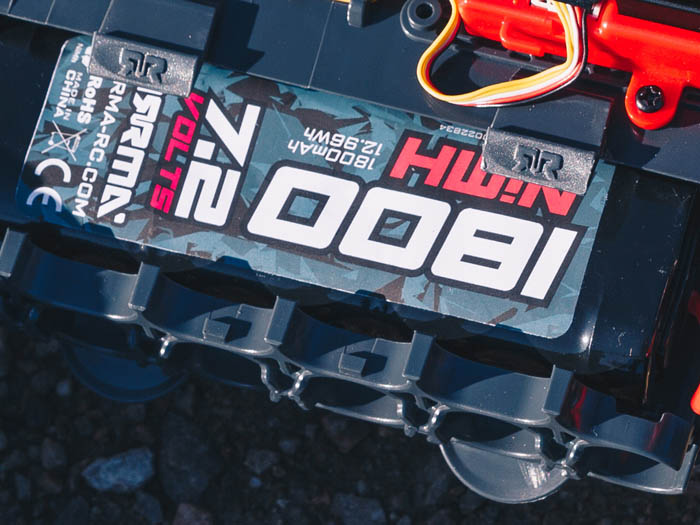

  1800mAh 7.2v 6 CELL NiMH BATTERY INCLUDED
  • 1 x 6 cell 7.2v NiMH pack ~ 4-8 min runtime*
  *Dependent on driving conditions, driving style and battery age
•
  ...OR USE YOUR
  EXISTING LiPo PACKS
  • 1 x 2S LiPo pack (Min. 2000mAh 25C) ~ 8-22 min runtime*
  *Dependent on driving conditions, driving style, battery capacity and battery age
•
  ARRMA ADC-N6 CHARGER
  6 cell NiMH wall charger
•

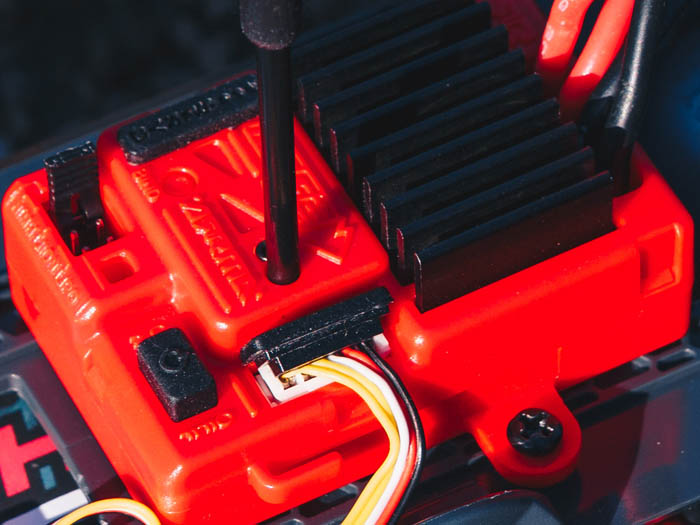

  ARRMA MEGA SRS 3-IN-1 UNIT
  • Combines ESC, Receiver & electronic control element of Servo
  • Industry standard 3-wire servo* can be plugged into the MEGA SRS 3-in-1 unit
  • ADS-5 SRS servo can plug into the MEGA SRS 3-in-1 unit via 5-wire cable
  • Battery mode (to control cut-off voltage) is selected by positioning jump connector
  *3-wire servo is optional and is not supplied as standard
•

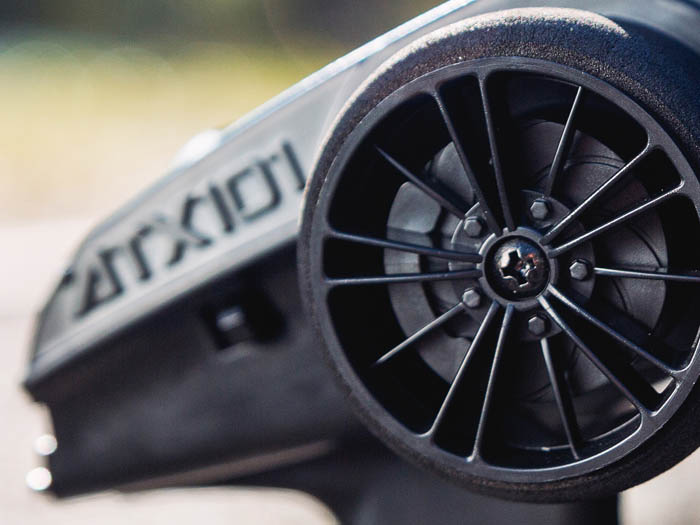

  ARRMA ATX101 TRANSMITTER
  • ARRMA designed ergonomics suitable for a wide range of hand sizes
  • 4 x AA batteries* fit into the handle of the ATX101
  • Beautifully balanced and comfortable to use
  *4 x AA batteries included as standard
  ARRMA ADS-5
  SRS SERVO
  • Servo unit only contains motor and gears (electronics are contained within MEGA SRS 3-in-1 unit)
  • Performance: 70oz/in (5kg/cm) 0.12s at 6V

Specifications

Resources

ARA102727T1

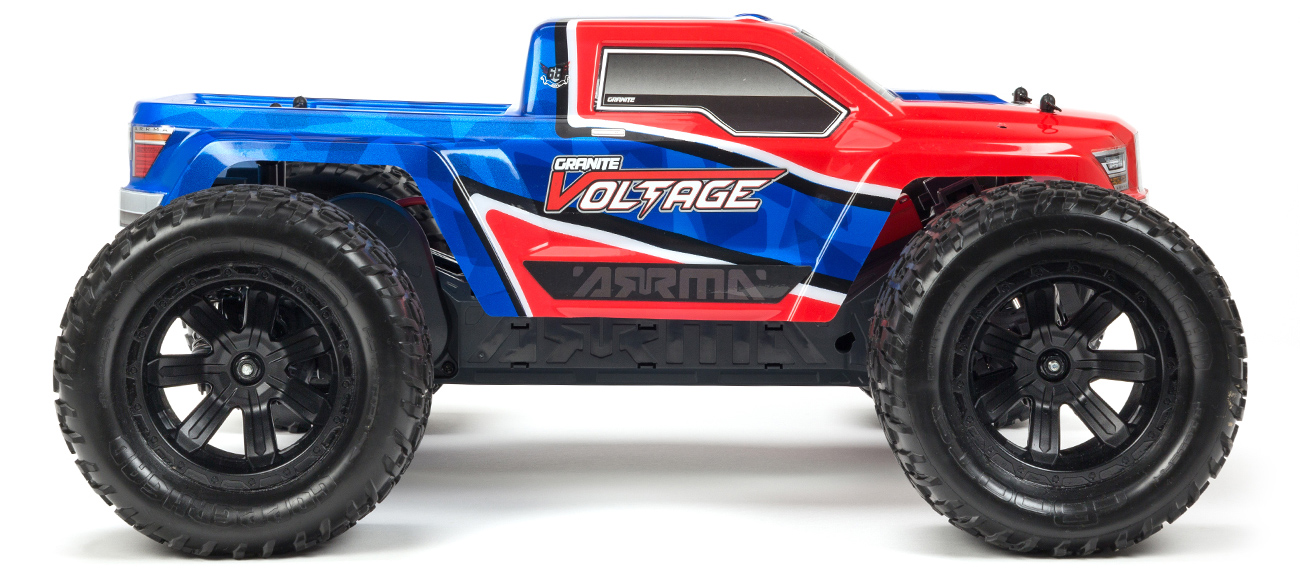

GRANITE VOLTAGE RED/BLUE

Product Page / Downloads

Exploded View (Interactive)

Standard Parts

Option Parts

ARA102727T2

GRANITE VOLTAGE BLUE/BLACK

Product Page / Downloads

Exploded View (Interactive)

Standard Parts

Option Parts

ARA102727T3

GRANITE VOLTAGE RED/BLACK

Product Page / Downloads

Exploded View (Interactive)

Standard Parts

Option Parts

Quick Start

Learn how to get up and running quickly with your ARRMA GRANITE vehicle
