Specifications

ARRMA Part Number
ARA4312V3
Vehicle Name

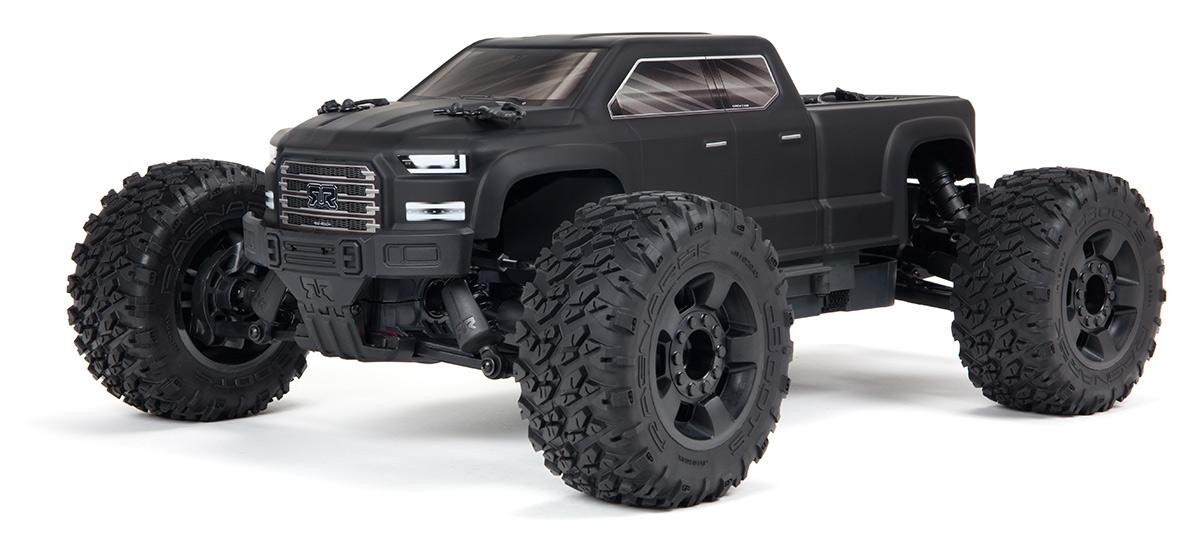

BIG ROCK CREW CAB 4X4 3S BLX BRUSHLESS 1/10TH 4WD MONSTER TRUCK (BLACK)
SCALE
1/10
MAX SPEED POSSIBLE
50+mph / 80+km/h
POWER TYPE
Brushless
BUILD STATUS
RTR
Saleable Part #
ARA4312V3
BUILD CONFIGURATION OPTIONS
Mid Motor
DRIVE TYPE
4WD
VEHICLE TYPE
Monster Truck
SURFACE
Off-road
LENGTH
514mm / 20.24"
WHEELBASE
327mm / 12.87"
RIDE HEIGHT
55mm / 2.17"
FRONT WIDTH
351mm / 13.82"
REAR WIDTH
356mm / 14.02"
HEIGHT
201mm / 7.91"
NUMBER OF DIFFERENTIALS
2
WEIGHT (NO BATTERY)
2.84kg / 6lbs 4oz
BATTERY RECOMMENDATIONS
2S or 3S Lipo (Hardcase only) within dimensions 165 x 51 x 48mm / 6.5 x 2.01 x 1.89 inches
WARRANTY LEVEL
2 Year Limited
ARRMA Part Number
ARA4312V3
Vehicle Name
BIG ROCK CREW CAB 4X4 3S BLX BRUSHLESS 1/10TH 4WD MONSTER TRUCK (BLACK)
BODY LENGTH
450mm / 17.72"
BODY WIDTH
160mm / 6.3"
BODY HEIGHT
114mm / 4.49"
FRONT SPRING RATE
1.00N/mm
REAR SPRING RATE
0.84N/mm
CAPTURED HINGEPINS
Yes
TURNBUCKLES/FIXED LINKS
Turnbuckles
HARDWARE TYPE
Hex Head
LOCKING DIFFS
No
DIFFERENTIAL TYPE
Gear
STANDARD SHOCK OIL (Viscosity)
500cSt
STANDARD DIFF OIL (Viscosity)
10,000cSt
STANDARD SHOCK OIL (Type)
Silicone
STANDARD DIFF OIL (Type)
Silicone
DIFFERENTIAL CROWN GEAR SPECIFICIATION
37T 1.35m
DIFFERENTIAL PINION GEAR SPECIFICIATION
13T 1.35m
INTERNAL GEAR RATIO
2.85
INTERNAL GEAR MATERIAL
Plastic

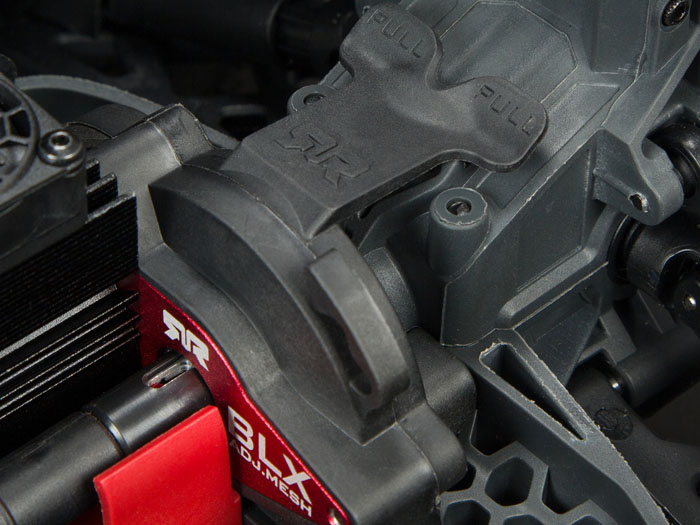

FITTED SPUR SIZE
57Tooth
FITTED SPUR MATERIAL
Plastic
FITTED PINION GEAR SIZE
15Tooth
FITTED PINION MATERIAL
Metal
PINION AND SPUR TOOTH PITCH
0.8m
STANDARD FINAL GEAR RATIO
10.83
FINAL GEAR RATIO RANGE
6.25 - 10.83
TIRE STANDARD
MT (2.8")

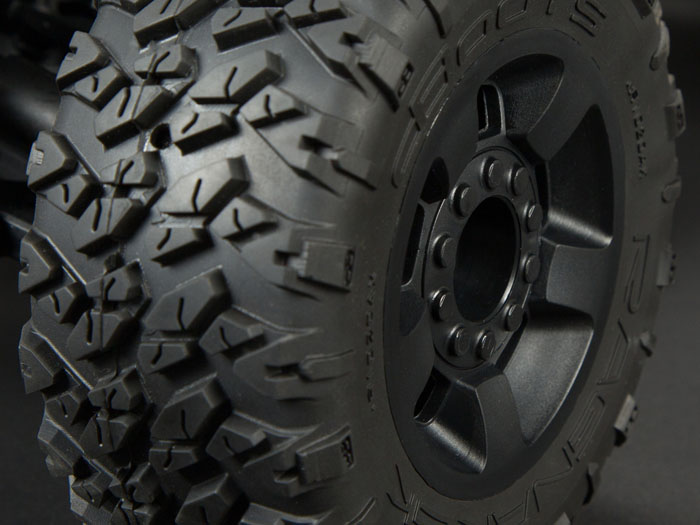

TIRES INCLUDED
dBoots Ragnarok MT
TIRE DIAMETER
130mm / 5.12"
TIRE INSERT TYPE
Medium
DRIVESHAFT TYPE
UJ Slider
WHEEL BEAD DIAMETER
71.5mm / 2.81"
WHEEL HEX SIZE
14mm
WHEEL STANDARD
MT
WHEEL COLOR/FINISH
Black
MOUNTED TIRES
Yes
TIRE ATTACHMENT METHOD
Glue
BOX DIMENSIONS
620x360x218mm / 24.41x14.17x8.58"
SERVO HORN MATERIAL
Plastic
SERVO SPLINE SIZE
23T
BATTERY MAX DIMENSIONS
165x51x48mm / 6.5x2.01x1.89"
CHASSIS MATERIAL
Moulded Composite
TRIMMED BODY
Yes
BODY-ON BATTERY ACCESS
No
BODY PIN RETAINERS
Yes
TORQUE SPLIT
50/50
MODEL PRODUCTION YEAR
2020
ARRMA Part Number
ARA4312V3
Vehicle Name
BIG ROCK CREW CAB 4X4 3S BLX BRUSHLESS 1/10TH 4WD MONSTER TRUCK (BLACK)
POWER LEVEL
3S

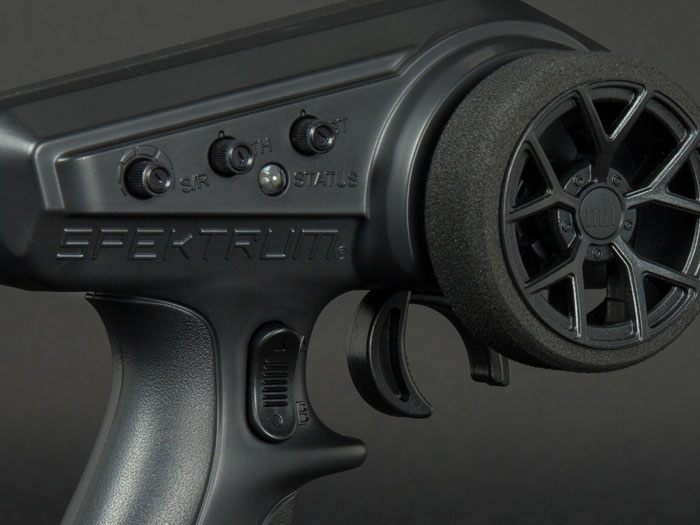

RADIO SYSTEM
SPEKTRUM SLT3
2.4Ghz
Yes
NUMBER OF RADIO CHANNELS
3
ESC
ARRMA BLX100 Waterproof
WATERPROOF ELECTRONICS
Yes
ESC CONNECTOR TYPE
IC5
MOTOR
SPEKTRUM FIRMA BRUSHLESS 3200Kv 3660
MAXIMUM MOTOR SIZE
3668

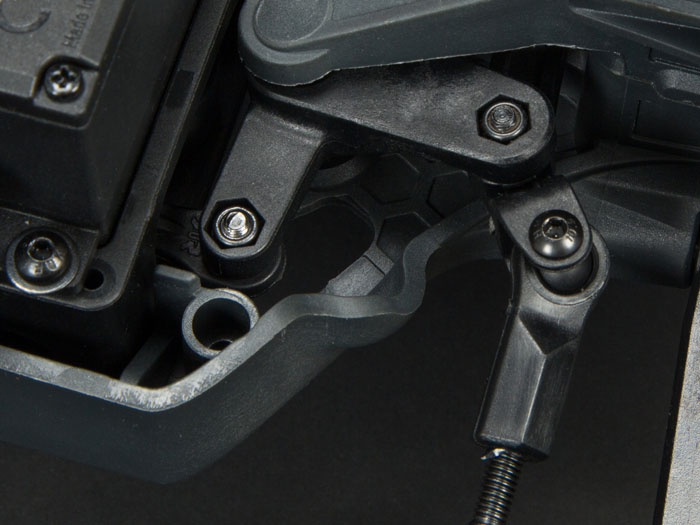

SERVO
SPEKTRUM S651
SERVO GEAR MATERIAL
Metal
MAX SERVO TORQUE @6v
7.27kg-cm / 101oz-in
MAX SERVO SPEED @6v
0.14sec
ARRMA Part Number
ARA4312V3
Vehicle Name
BIG ROCK CREW CAB 4X4 3S BLX BRUSHLESS 1/10TH 4WD MONSTER TRUCK (BLACK)

Included

BATTERY CONNECTOR SUPPLIED
IC5
TOOLS INCLUDED
Multi Tool and Hex Wrenches (2.0, 2.5mm)

Required

RECOMMENDED LIPO BATTERY MINIMUM CONTINUOUS DISCHARGE RATE
35C 5000mAh
REQUIRED ITEMS
6 to 8-Cell NiMh, 2S LiPo or 3S Hardcase LiPo Battery, LiPo Charging Bag, Charger, 4 x 'AA' Batteries
