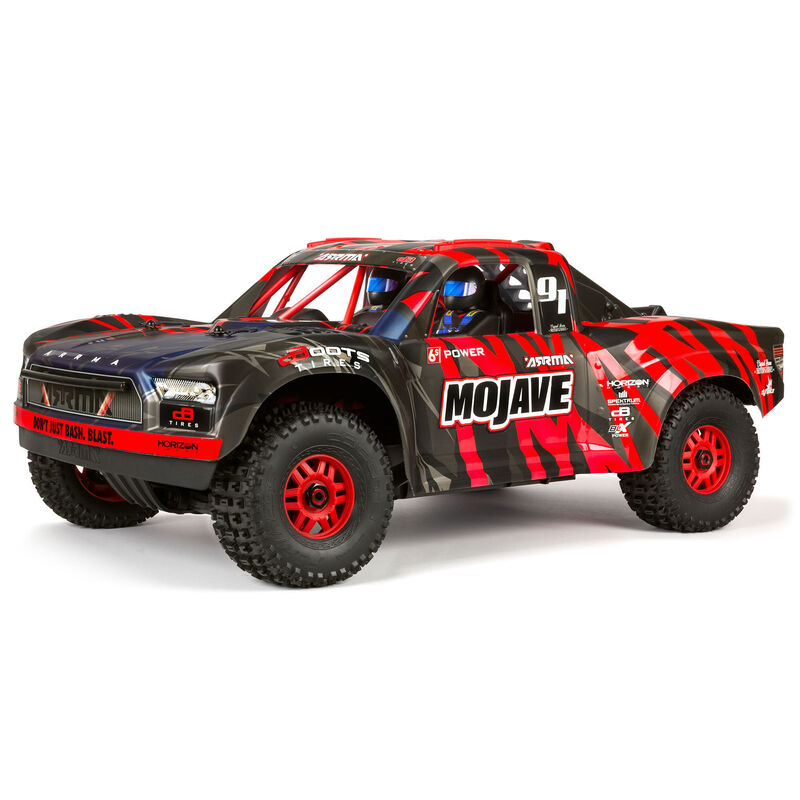

1/7 MOJAVE 6S V2 4WD BLX Desert Truck with Spektrum Firma RTR, Red/Black

4.2 out of 5 Customer Rating
ARRMA #ARA7604V2T2
Earn points on this item
In Stock
Selected Store
color:

| Checkout out our products at a store near you.
Product Logo
The 1/7 scale ARRMA® MOJAVE™ 6S BLX 4WD Desert Truck RTR is ready for big bashing action on any terrain. Its Spektrum™ SLT3™ 3-channel radio, dual protocol receiver, Smart ESC and more combine to reach new levels of speed, toughness and versatility.
  • Updated with Spektrum™ components and Smart compatible
  • 60+ MPH (97km/h) speeds achievable in optimum conditions using a 6S LiPo battery and the optional pinion gear included
  • EXB compatible front brace
  • Large volume waterproof receiver box
  • Ready-to-run - just install a charged 4 cell or 6 cell LiPo battery of your choice
  • (1) ARRMA® MOJAVE™ 6S BLX 1/7 Desert Truck RTR
  • (1) Spektrum™ Firma™ 150A Smart 4S/6S ESC (installed)
  • (1) Spektrum ™ Firma ™ 4074 2050Kv Brushless Motor with ARRMA® Heatsink (installed)
  • (1) Spektrum ™ S652 Metal-Geared Digital Servo (installed)
  • (1) Spektrum ™ SR315 3-Channel Dual Protocol Receiver (installed)
  • (1) Spektrum ™ SLT3™ 2.4GHz 3-Channel Radio
  • (1) 1/7 MOJAVE 6S V2 4WD BLX Manual
  • (2) 2S or (2) 3S LiPo Batteries with EC5™ or IC5™ connector
  • (1) Compatible Battery Charger
  • (4) AA batteries for Transmitter
1/7 MOJAVE 6S V2 4WD BLX Desert Truck with Spektrum Firma RTR, Red/Black

Introduction

Experience the speed and durability of ARRMA® bashing in a big way with the 1/7 scale brushless MOJAVE 6S BLX 4WD Desert Truck. Designed Fast and Designed Tough, it's ready for extreme performance right out of the box, whether you're thrashing through coastal sand dunes or blasting across concrete sidewalks

Features

  • Ready-to-run
  • Spektrum SLT3 2.4GHz 3-Channel Radio
  • Spektrum SR315 Dual Protocol 3-Channel Receiver
  • Spektrum S652 Digital Servo
  • Spektrum Firma 150A Smart ESC
  • Spektrum Firma 4074 2050Kv Brushless Motor
  • EXB compatible front brace
  • Stronger rear brace mount
  • Large volume waterproof* receiver box
  • +1mm wheel hexes
  • Stronger body mounts
  • Anodized aluminum chassis
  • Strong composite chassis side pods
  • Center brace for maximum durability
  • Center roll hoop interfaces with body roll cage for enhanced body durability
  • Nerf bars for body and side impact support
  • Realistic front and rear bumper protection
  • Independent suspension for superior handling
  • Flexible front bumper valance
  • Heavy-duty suspension arms with red-anodized aluminum strengthening cap
  • Oil-filled adjustable shocks
  • Black-anodized aluminum front and rear shock towers
  • Durable steel driveshafts throughout
  • Heavy-duty drivetrain
  • All-metal diff outdrives and gearbox internals
  • Never-loose red aluminum servo saver
  • Never-pop ball ends
  • 5-Bolt center diff removal
  • Easy-access sliding motor mount for quick motor removal
  • Super-durable wheel hubs for increased strength
  • Color-coordinated multi split-spoke wheels
  • Multi-terrain dBoots® FORTRESS tires
  • Multi-finish matte and gloss body
  • Realistic cockpit detail
  • Ultra-detailed decals
  • Color coordinated protective roll cage and roof rails
  • IC5® connectors (EC5 compatible)
  • 2-year limited warranty (see manual for details)
*For details on waterproof standards, please refer to the product instruction manual



Overview

ARRMA® engineers have updated the MOJAVE 6S BLX 4WD Desert Truck with a brushless power system featuring the Spektrum Firma 150A Smart ESC and Firma 2050Kv brushless motor. The combination lets you cut loose with incredible torque, acceleration and speed, while the heavy-duty aluminum and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA® also includes a new, steel gear Spektrum S652 Digital Servo — which is 32% stronger and 5% faster than the previous version's ADS-15M servo.

The ready-to-run package now also includes a 3-channel Spektrum SLT3 radio and Spektrum SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter's ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you're a new driver, you'll be able to set throttle limits at 50% or 75% until you're ready to use the full speed potential. The SLT3 is compatible with Tactic® SLT receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.

Because the SR315 receiver can use SLT and DSMR® protocols, you can easily upgrade to a Spektrum DSMR® transmitter later — then, download the free Spektrum Dashboard app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma electronics. You'll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.

With the rugged construction of the MOJAVE 6S BLX 4WD Desert Truck, you'll have the strength needed to survive anything — bashing through dirt, asphalt and grass, in sun, rain or snow. The tough-as-nails anodized aluminum chassis is reinforced with front, rear and center braces for maximum durability. Bumpers and nerf bars supply impact protection on all sides. Thanks to independent suspension with bump-soaking oil-filled shocks, the Desert Truck handles equally well over wicked and well-travelled tracks.

The drivetrain is a masterpiece of heavy-duty design. Featuring steel driveshafts, metal gears, and all-metal diff outdrives, it's ready to take full advantage of the brushless power system's potential. As it comes out of the box, the MOJAVE 6S BLX Desert Truck is incredibly fast. Use a 6S LiPo with the optional pinion gear upgrade (gear is included), and the resulting 60+ MPH speed potential is enough to crush any competitor. Keeping your truck in top form is easy. A sliding mount gives you access to the motor in seconds. You can remove the center diff for maintenance by taking out just five bolts.

Multi-terrain dBoots® FORTRESS tires on multi split-spoke wheels give your MOJAVE 6S BLX Desert Truck the grip to get up, over, or through anything in your way. And it doesn't just perform like a winner. It looks like one, too, with a painted and decaled desert truck body, color-coordinated roll cage and roof rails, and even a detailed cockpit.

Video Overview



TWO BROTHERS, TWO COLORS
TWO BROTHERS, TWO COLORS

Each with color coordinated wheels, roll cage, and roof rails



FEATURE_TITLE
FROM STRENGTH TO STRENGTH

Red anodized aluminum strengthening cap with pivot ball geometry



LONG RANGE
LONG RANGE

Independent suspension for superior handling



SIDE NERF BARS
SIDE NERF BARS

Attached to body for side impact support



SAFE-D FIRST
SAFE-D FIRST

Input gears are keyed to the drive cups composite sleeves to fortify retention of the drive cup ser screw.



FRONT PIVOT BALL SUSPENSION
FRONT PIVOT BALL SUSPENSION

For precise handling at top speeds



QUICK MAINTENANCE
QUICK MAINTENANCE

5 bolt center diff removal for easy access



SPEKTRUM SMART TECHNOLOGY INCLUDED
SPEKTRUM® SMART TECHNOLOGY INCLUDED

FIRMA 150A SMART Brushless ESC and FIRMA 4074 2050Kv Brushless Motor



RUBBER SHIELDED BEARINGS
RUBBER SHIELDED BEARINGS

Longer life, less maintenance



GO LARGE
GO LARGE

Large volume waterproof receiver box



OPTIONAL SPEED PINION INCLUDED
OPTIONAL SPEED PINION INCLUDED

Red anodized motor mount and Mod 1 spur and pinion gears to handle optimum performance.



SPEKTRUM SPMS652 DIGITAL SERVO
SPEKTRUM® SPMS652 DIGITAL SERVO
  • All Steel Gears
  • Waterproof*
  • 19.08kg-cm/265oz-in Torque @7.4V
  • 32% More Torque & 5% Faster than ADS-15M Servo
*For details on waterproof standards please refer to the product instruction manual



SPEKTRUM SLT3 RADIO
SPEKTRUM® SLT3® RADIO
  • Superb SLT response rate
  • 50% and 75% throttle limited switch - great for beginners
  • Steering & throttle rate & trim adjustments with throttle and steering reversing
  • Foam steering wheel grip
  • Compatible with Tactic Receivers



SPEKTRUM SR315 RECEIVER
SPEKTRUM® SR315 RECEIVER
  • Dual Protocol - Compatible with SLT and DSMR® 2.4GHz protocol transmitters
  • Fast reponse rate and outstanding range
  • No tool binding and protocol switching
  • SMART telemetry compatible
  • 3-Channels



FIRMA 150A SMART Brushless ESC
FIRMA 150A SMART Brushless ESC
  • Waterproof* and dustproof design
  • 150A, 6S LiPo ready (3S, 4S & 6S LiPo compatible)
  • Spektrum® SMART Technology
  • Fitted with reliable IC5® connectors (EC5 compatible)
  • Integrated fan for reduced heat during extreme running
  • High quality 10awg wires
  • Low voltage cut off and thermal overload protection
  • User programmable punch, brake, BEC, reverse speed and motor timing settings
*For details on waterproof standards, please refer to the product instruction manual



FIRMA 4074 2050Kv Brushless Motor
FIRMA 4074 2050Kv Brushless Motor
  • 2050Kv 4074 size 6S brushless motor
  • Beautifully etched aluminum can
  • 4-pole construction for smooth and consistent power
  • 4mm gold bullet connectors for reliable and efficient connection
  • Black anodized aluminum motor can for increased heat dissipation
  • Super strong 5mm shaft
  • Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip



4S Completion Guide

These are our suggested products to complete this product.

6S Completion Guide

These are our suggested products to complete this product.

Product Specifications

Final Drive Ratio
13.44
Motor Type
Brushless
Rear Track
13.98" (355mm)
Speed Control
Included
Battery
Sold Separately
Connector Type
IC5, EC5
Internal Gear Ratio
4.3
Motor Size
FIRMA™ 4074 2050Kv Brushless Motor
Product Length
28.15" (715 mm)
Spur Gear
50T
Steering Type
2WS
Suspension
Independent
Tire Type
Multi-surface
Wheel Width
1.66" (42mm)
Product Weight
11.88lbs (35mm)
Tire Tread
dBoots FORTRESS
Approximate Assembly Time
No assembly required
Body
Painted, decaled and trimmed
Brakes
Integral with ESC
Pinion
16T
Scale
1/7
Vehicle Type
Short Course Truck
Water-Resistant
Yes
Power Type
Electric
Gear Pitch
1.0MOD
Servos
Included
Front Track
13.98" (355mm)
Power System
6S
Product Width
13.98" (355 mm)
Vehicle Size
Large
Radio
Included
Technology
Smart, Dual Protocol RX (DSMR/SLT)
Ball Bearings
Full set
Chassis
0.12" (3mm) 6061-T6 aluminum
Completion Level
Ready-To-Run
Drivetrain
4WD
Drive Type
Forward/Brake/Reverse
Front Shock Spring Rate
3.2 f-lb/in
Product Height
10.59" (269 mm)
Top Speed
60+
Wheel Hex Size
17mm
Bushing Material
Metal
Charger
Sold Separately
Differential
3-gear
Rear Shock Spring Rate
7.7 f-lb/in
Receiver
Included
Shock Type
Aluminum body, oil-filled adjustable
Wheel Type
1/7 SC, 17mm Hex, Multi Split Spoke
